    •   ZZYP self-powered pressure regulating valve is a kind of pressure regulating valve without additional energy. It uses the energy of controlled medium itself as power source and introduces the actuating chamber to generate thrust, so as to control the movement of throttling element to achieve automatic regulation. ZZYP control valve has comprehensive functions of measurement, execution and control. It can be used in air-free and electricity-free places. It is widely used in the automatic control system of petroleum, chemical industry, power station, light industry, printing and dyeing industry for the deceleration of gas, liquid and steam media, pressure stabilization (used for pressure regulation after valve), pressure relief and pressure stabilization (used for pressure regulation before valve).

    Technical parameters and installation dimensions of ZZYP self-operated pressure regulating valve：

    公稱通(tong)徑(jing)DN（mm）

    20

    25

    32

    40

    50

    65

    80

    100

    125

    150

    200

    閥座(zuo)直(zhi)徑DN（mm）

    10

    12

    15

    20

    額定流量系(xi)數Kv

    1.8

    2.4

    4.4

    4

    11

    20

    30

    48

    75

    120

    190

    300

    480

    760

    允許壓差（MPa）

    2.5

    2.0

    1.6

    1.0

    公稱壓力(li)（MPa）

    1.6 4.0 6.4

    固(gu)有流量特性

    快(kuai)開

    保證調壓閥正常工作
    的小壓(ya)差P（MPa）

    0.05

    壓力分段范圍
    （KPa）

    15～50  40～80  60～100  80～140  120～80
    160～220 200～260 240～300 280～350 330～400
    380～450 430～500 480～560 540～620 600～700
    680～800 780～900 800～1000 900～2000

    工作溫度℃

    液體(ti)≤140;氣體(ti)≤80；配冷(leng)凝器和散熱片≤350

    適合介質

    氣(qi)體、蒸汽、低粘度液體

    法(fa)蘭尺寸、型式

    PN10、16、40GB9113-88、PN64JB/T7-94；PN10，16凸式，PN40，64凹式
    或根(gen)據用戶要(yao)求選配其它(ta)標準(zhun)型式的法蘭（如：ANSI、JIS、DIN等標準(zhun)）

    結構長度

    按GB12221-89標準

    可(ke)配附件

    冷凝器（用(yong)于介質為蒸汽的場合）、散熱片等。

    執行(xing)機(ji)構信號(hao)接口

    內(nei)螺紋(wen)M16×1.5

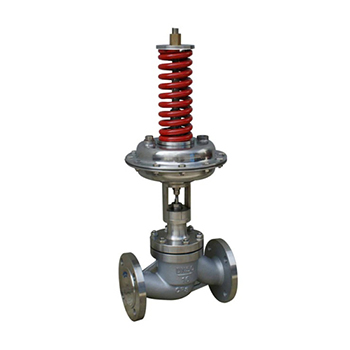

ZZYP Self-operated Pressure Regulating Valve
